DataCam CMOS cameras

Moravian instruments, Inc., source: https://www.mii.cz/art?id=991&lang=409, printed: 30.04.2025 11:08:50

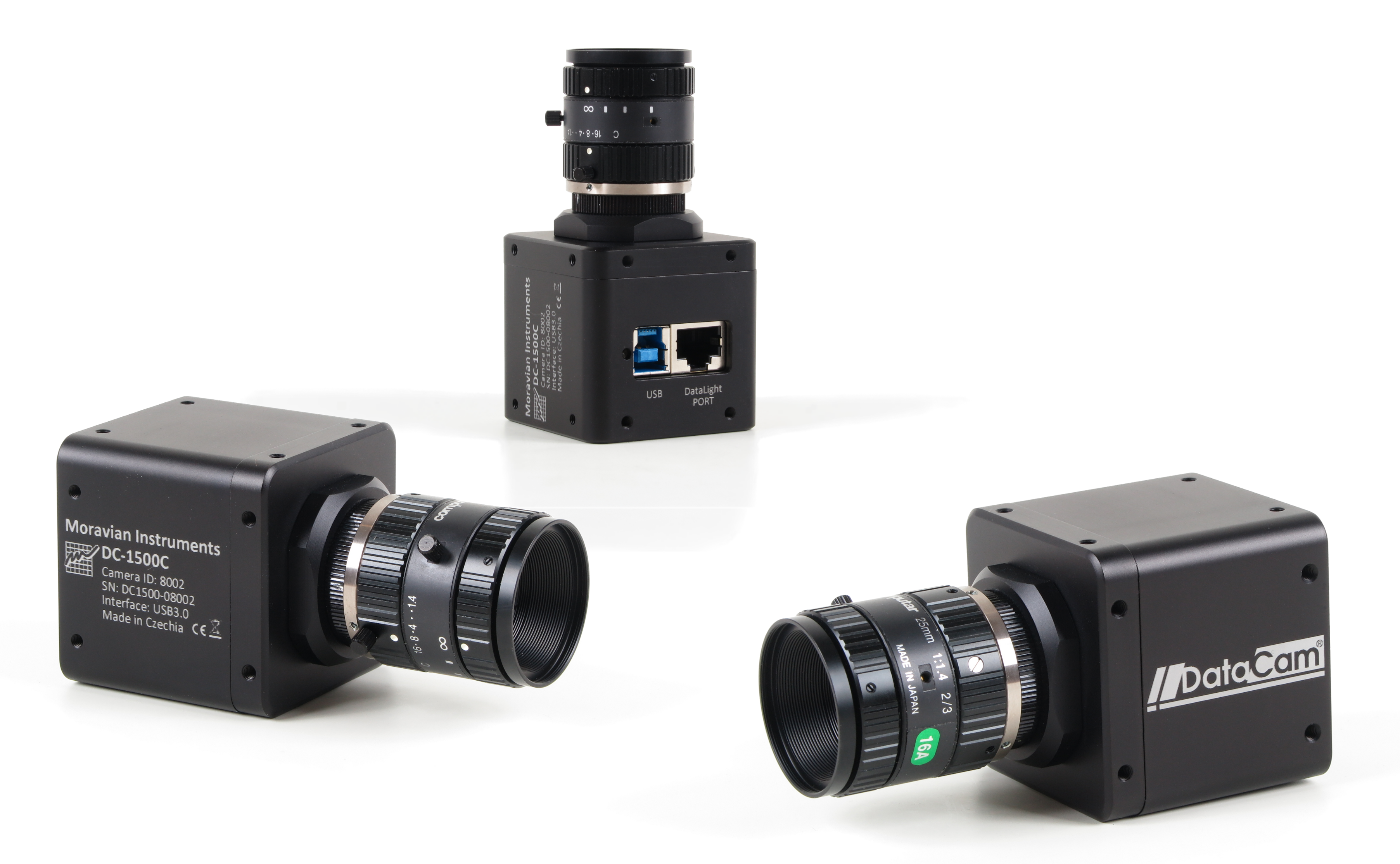

There are three basic types of cameras based on CMOS sensor resolution:

DC-1500 – with 1,5 Mpx resolution

DC-3000 – with 3 Mpx resolution

DC-5000 – with 5 Mpx resolution

Each type can then be either in a color variant with 16.7 million colors or in a monochrome variant with 256 gray levels.

DataCam CMOS cameras

Features of DataCam CMOS cameras

DC-1500 DC-3000 DC-5000

Resolution 1140 x 1080 2048 x 1536 2448 x 2048

Max. frame rate (FPS) 60 30 18

Chip size 1/2,9" 1/1,8" 2/3"

Exposure time range 125 µs - 8,192 s

Communication Interface USB 3.0

Lens Thread C or CS

Connector 8-pin RJ-45 to connect the lighting unit

Dimensions 50 x 50 x 48,6 mm

Weight 165 g (without lens)

Power supply from USB

Consumption 350 mA

Temperature range -20 °C - +50 °C

Small DataCam CMOS cameras are built into a robust aluminum body with high-quality finish. Camera housing and dimensions are the same for all models and are shown below:

Dimensions of the DataCam CMOS camera

DataCam CMOS cameras feature mounting holes for easy attachment to various racks or brackets. These holes are located on the back wall and on the sides of the aluminum body. They consist of four M3 holes. Thread depth for attachment is 7 mm.

A tripod mount bracket is available for mounting the camera with a tripod screw. The drawing of the tripod bracket shown in the following illustration shows the layout of the threads and mounting holes with dimensions in millimeters:

DataCam CMOS camera holder

New CMOS cameras are fully supported by Control Web, starting with version 8.0.23. So you can work the same way with both existing CCD cameras and new CMOS cameras. There is nothing to change on your applications. However, you get higher resolution and much higher frame rate with traditionally very high image quality.
